TransendPay SDK Documentation

Key Features

• Open a payment modal for customers to complete transactions.
• Listen to events such as transaction approval, denial, or failure.
• Customize the modal and button behavior to fit your website's needs.

Sandbox (Mock) Environment

You can use the TransendPay SDK with the Transend SIT/Mock API for testing and development purposes. Simply hit the SIT Mock endpoints and your sessions will be automatically provided to the mock environment.

Security Considerations

Implementation details below are shown in JavaScript facing the client side (i.e. on a web page). This allows for a simplistic approach in integrating the TransendPay SDK, but it also means that sensitive information (like client secrets) could potentially be exposed. Always ensure that sensitive operations are performed server-side.

For example, instead of performing calls to the Transend API directly in the frontend, which could expose your client ID and secret to attackers, you could set up a backend service to handle these requests securely and then call your backend service from your frontend.

Download the SDK

The TransendPay SDK is available for static download (or import) from our Google Cloud Bucket. You can download the latest version here.

Last Updated: September 15th, 2026

Implementation Guide

Step 1: Import the SDK

Include the TransendPay SDK in your website by importing the provided link or statically downloaded file. This can be done via a <script> tag in your HTML.

Copy<script src="transend-pay-sdk-vX.Y.Z.js"></script>

The SDK will expose a global object transendPay on the window.

Step 2: Initialize the SDK

Create an SDK instance using the init function. This function takes optional configuration options.

Copyconst controller = transendPay.init({
  zIndex: 9999,   // Optional: Customize the z-index of the modal overlay
});

The controller object returned by init will be used to interact with the SDK.

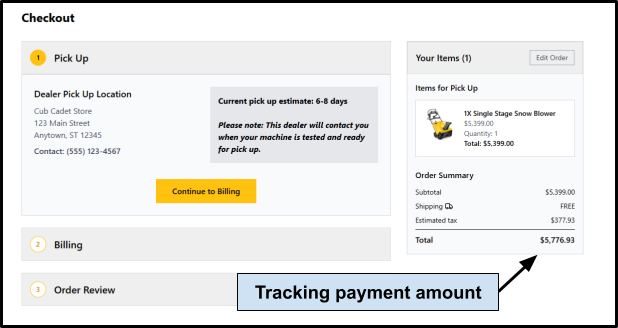

Step 3: Collect Purchase Information

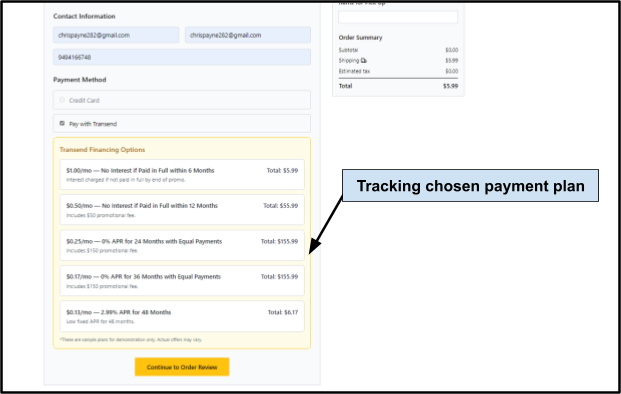

As the buyer navigates your site, collect key information such as the purchase amount and payment plan ID. This information will be used to generate a session ID.

Step 4: Obtain a Session ID

When the customer chooses to pay with Transend, send a request to the Transend API with the payment plan ID and purchase amount to obtain a session ID. The session ID represents a cart checkout session, not a user authentication token. You need to provide your client id and client secret as a Basic authentication token in the Authorization header.

You can provide an optional callback url to this endpoint, which will be hit with a standard payload upon a session status change. For example, if you wanted to maintain a store of created sessions and associated statuses, you could provide a webhook to receive session updates.

Copy// Example: Fetch session ID from Transend API backend
const clientId = 'your-client-id';
const clientSecret = 'your-client-secret';
const resp = await fetch(transendApiBase + '/getModal', {
  method: 'POST',
  headers: {
    'Content-Type': 'application/json',
    'Authorization': 'Basic ' + btoa(clientId + ':' + clientSecret)
  },
  body: JSON.stringify({
    planId: paymentPlanId,  // Payment plan ID obtained from previous step
    amount: purchaseAmount, // Amount in decimal format (e.g., 100.00)
    invoiceNumber: 'INV-1001', // Optional invoice number for internal tracking
    callbackUrl: 'https://my-backend-api.example.com/callback' // Optional callback url on session status changes
  }),
});
const data = await resp.json();
// data = { sessionId: "<GUID>", url: "<MODAL_URL>" }

Step 5: Open the Modal

Use the open function to display the Transend payment modal. Pass the session ID and an onClose handler. This sets the customer through the Transend payment process by interacting with a Transend modal. The onClose handler runs after Transend makes a decision and either accepts or closes the customer's transaction.

By default, the SDK renders the embedded iframe as a modal with an overlay. If your session was created via getModal with renderHostedSite set to true, pass isFullScreen: true to open so the iframe fills the host page's entire width and height. When isFullScreen is omitted or false, the iframe is displayed as a modal overlay.

Copycontroller.open({
  sessionId: data.sessionId, // Obtained from `getModal` call
  url: data.url,             // Obtained from `getModal` call
  isFullScreen: true,        // Optional: full-screen iframe for `renderHostedSite` sessions
  onClose: () => {
    console.log('Modal closed'); // `onClose` occurs after ANY decision made by Transend
  },
});

Step 6: Find Session Status

After the modal closes there are two methods you can use to obtain the resulting session status (accepted, closed, etc). First, you can hit the Transend API /status endpoint directly in the onClose handler.

Copyconst clientId = 'your-client-id';
const clientSecret = 'your-client-secret';

controller.open({
  sessionId: data.sessionId, // Obtained from `getModal` call
  url: data.url,             // Obtained from `getModal` call
  onClose: async () => {
    console.log('Modal closed'); // `onClose` occurs after ANY decision made by Transend

    // Now fetch session status
    const resp = await fetch(transendApiBase + '/status', {
      method: 'POST',
      headers: {
        'Content-Type': 'application/json',
        'Authorization': 'Basic ' + btoa(clientId + ':' + clientSecret)
      },
      body: JSON.stringify({
        sessionId: sessionId,
      }),
    })
    .then(r => r.json()) // On success, parse response
    .catch((err) => {    // Handle error state from '/status' call
        console.error('Error checking session:', err);
    });

    if (resp.status === 'ACCEPTED') {
      // Handle acceptance state (customer accepted transaction)
    } else if (resp.status === 'CLOSED') {
      // Handle closed state (transaction was denied)
    } else if (resp.status === 'ERROR') {
      // Handle error state
    }
  },
});

In addition, you could have specified a callback URL to the getModal request. This can allow for custom implementations where you could call your own API and get status updates from there.

API Reference

transendPay.init(options?: InitOptions): Controller

Description: Initializes the SDK and returns a Controller instance.

Parameters:

• options.zIndex (number, optional): Z-index for the modal overlay.

Returns: A Controller instance.

Controller.open(opts: OpenOptions): void

Description: Opens the Transend payment modal or embedded hosted site (e.g. Shopify) iframe.

Parameters:

• opts.sessionId (string, required): The session ID for the transaction.
• opts.url (string, required): The modal URL returned from the getModal call.
• opts.isFullScreen (boolean, optional): When true, renders the embedded iframe at the full width and height of the host page. Intended for sessions created via getModal with renderHostedSite: true. When omitted or false, the iframe is displayed as a modal overlay. Defaults to false.
• opts.onClose (function, required): Callback fired when the modal is closed

Controller.close(): void

Description: Closes the modal if it is open.

Building Your Own SDK

The TransendPay SDK is a client-facing JavaScript module that makes embedding a Transend payment site easier to implement. However, if you want finer control over your code, styles, or layout, you can build your own integration instead of using the bundled SDK.

We recommend following the general practices of our SDK. At a high level, the host page embeds the modal URL returned from getModal and communicates with the Transend site using postMessage.

Step 1: Embed the Modal URL

Create an iframe element, overlay, or any other container that embeds the url returned from your getModal call. Style the container however you like—modal dialog, full-screen takeover, inline embed, and so on.

The official SDK uses a sandboxed iframe with the following attributes, which we recommend for security and compatibility:

Copyconst iframe = document.createElement('iframe');
iframe.src = modalUrl; // URL from getModal response
iframe.setAttribute('title', 'Secure Transend Payment');
iframe.setAttribute('sandbox', 'allow-scripts allow-forms allow-same-origin allow-modals allow-popups allow-popups-to-escape-sandbox');
iframe.setAttribute('frameborder', '0');

Warning: If you don't include these sandbox attributes, many features (credit agreement dialogs, form submissions, etc) will not work.

Step 2: Announce the Host Open

Once the iframe has loaded, use iframe.contentWindow.postMessage to send an open message to the Transend site. Messages use this shape: { type: string, payload: object }.

Post a message with type transend:host-open and a payload containing the session metadata:

Copyconst modalOrigin = new URL(modalUrl).origin;

iframe.addEventListener('load', () => {
  iframe.contentWindow.postMessage(
    {
      type: 'transend:host-open',
      payload: {
        ts: Date.now(),
        userAgent: navigator.userAgent,
        sessionId: sessionId, // From getModal response
      },
    },
    modalOrigin
  );
});

Always pass the modal URL's origin as the targetOrigin argument to postMessage.

Step 3: Listen for Close

Add a message event listener on window and validate that incoming messages originate from the modal URL's origin. When the Transend site finishes the payment flow, it sends a transend:close-request message—this is your signal to tear down the iframe and run any cleanup logic.

Copyfunction onMessage(event) {
  if (event.origin !== modalOrigin) return;

  const data = event.data || {};
  if (!data.type || data.type.indexOf('transend:') !== 0) return;

  switch (data.type) {
    case 'transend:close-request':
      // User finished (or exited) the payment flow — remove the iframe
      iframe.remove();
      overlay.remove(); // if you created an overlay wrapper
      window.removeEventListener('message', onMessage);
      handleCompletion(sessionId);
      break;
    case 'transend:ready':
      // Iframe is ready (optional hook)
      break;
    case 'transend:resize':
      // Iframe requests a height change (optional hook)
      if (data.payload && data.payload.height) {
        iframe.style.height = data.payload.height + 'px';
      }
      break;
  }
}

window.addEventListener('message', onMessage);

Before removing the iframe, you may optionally notify the Transend site by posting a transend:host-close message (with no payload) back to the iframe—the official SDK does this as part of its cleanup.

Step 4: Handle Completion

After you receive the close signal and remove the iframe, run your on-completion logic. We recommend fetching the session's status from your backend (which calls the Transend /status endpoint) rather than calling the Transend API directly from the browser with client credentials.

Copyasync function handleCompletion(sessionId) {
  const resp = await fetch(baseUrl + '/status', {
    method: 'POST',
    headers: { 'Content-Type': 'application/json' },
    body: JSON.stringify({ sessionId }),
  }).then((r) => r.json());

  if (resp.status === 'ACCEPTED') {
    // Customer accepted the transaction
  } else if (resp.status === 'CLOSED') {
    // Transaction was denied or closed
  } else if (resp.status === 'ERROR') {
    // An error occurred during processing
  }
}

See Step 6: Find Session Status for details on session status values and the /status endpoint.

Example Integration

This simplified example demonstrates how to initialize the SDK, open the modal, and handle events.

Copy<script src="https://.../transend-pay-sdk-vX.Y.Z.js"></script>

<button id="pay-button">Make Payment</button>

<p id="result"></p>

<script>
  // App constants
  const clientId = "your-client-id";
  const clientSecret = "your-client-secret";
  const transendApiBase = "<PROVIDED_BASE_URL>/api/v1/transendpay";

  // TransendPay Controller
  const controller = transendPay.init();

  // Result div to display modal results
  const result = document.querySelector('#result');

  document.querySelector('#pay-button').addEventListener('click', async () => {
    // Get new session ID
    const data = await fetch(transendApiBase + '/getModal', {
      method: 'POST',
      headers: {
        'Content-Type': 'application/json',
        'Authorization': 'Basic ' + btoa(clientId + ':' + clientSecret)
      },
      body: JSON.stringify({
        amount: 100.00, // Fixed payment amount of $100.00
        planId: 1,      // Fixed payment plan with ID = 1
      }),
    }).then((res) => res.json());

    // Open modal
    controller.open({
      sessionId: data.sessionId,
      url: data.url,
      onClose: async () => {
        // On close, fetch session status
        const resp = await fetch(transendApiBase + '/status', {
          method: 'POST',
          headers: {
            'Content-Type': 'application/json',
            'Authorization': 'Basic ' + btoa(clientId + ':' + clientSecret)
          },
          body: JSON.stringify({
            sessionId: data.sessionId,
          }),
        })
        .then(r => r.json()) // On success, parse response
        .catch((err) => {    // Handle error state
            console.error('Error checking session:', err);
        });

        if (resp.status === 'ACCEPTED') {
          result.innerText = 'Your transaction has been accepted!';
        } else if (resp.status === 'CLOSED') {
          result.innerText = 'The transaction has been closed';
        } else if (resp.status === 'ERROR') {
          result.innerText = 'You have encountered an error';
        } else if (resp.status === 'PENDING') {
          result.innerText = 'You have left the process early';
        }
      },
    });
  });
</script>
